Instructions for Applying the
Gearhart
Tabulating Attachment
TO THE KNITTER

(Compliments of Judy Scheuneman)

(click on picture for larger view)

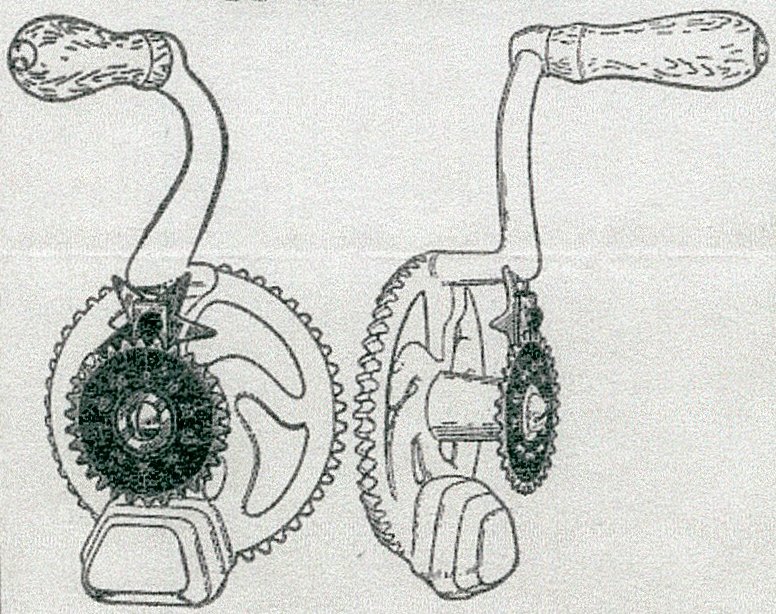

     Carefully study these illustrations to see the application of the Tabulator, the position it
should always be in when used, etc.
     Remove the screw which holds the Crank
Wheel at"D"and in its place use the screw which
is with the Tabulator putting it on securely.
     Firstóremove the burr or nut from the Tab- ulator screw and place on it instead, the washer taken off of the Machine. The Tabulator Dial
must turn freely and always remember when it
is first placed on the Machine and when it is set
to tabulate the rounds of knitting that one of
the points of the star has to be in an upright
position so that the Crank Handle will strike it correctly, and also the pointer which turns the
Dial must be pointing down into one of the
notches, otherwise the Tabulator will become
damaged and out of service. Always watch
this carefully.

GEARHART KNITTING MACHINE CO.
CLEARFIELD, PA., U. S. A.
